Product Summary
The EPCS1SI8N is a configuration device.
Parametrics
Absolute maximum ratings: (1)IMAX, DC VCC or GND current: 15 mA max; (2)IOUT, DC output current per pin: -25 to 25 mA; (3)PD, Power dissipation: 54 mW max; (4)TSTG, Storage temperature No bias: -65 to 150℃; (5)TAMB, Ambient temperature Under bias: -65 to 135℃; (6)TJ, Junction temperature Under bias:135℃ max.
Features
Features: (1)Easy-to-use four-pin interface; (2)Low cost, low-pin count, and non-volatile memory; (3)Low current during configuration and near-zero standby mode current; (4)2.7-V to 3.6-V operation; (5)EPCS1 and EPCS4 available in 8-pin small outline integrated circuit (SOIC) package. EPCS16 available in 8-pin or 16-pin SOIC packages. EPCS64 and EPCS128 available in 16-pin SOIC package; (6)Enables the NiosR processor to access unused flash memory through AS memory interface; (7)Re-programmable memory with more than 100,000 erase/program cycles; (8)Write protection support for memory sectors using status register bits.

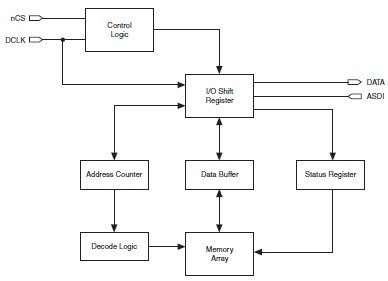

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPCS1SI8N |
Altera |
IC CONFIG DEVICE 1MBIT 8-SOIC |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EPCS1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
EPCS16SI16N |
Altera |
IC CONFIG DEVICE 16MBIT 16-SOIC |
Data Sheet |
|
|
||||||
|
EPCS16SI8N |
Altera |
IC CONFIG DEVICE 16MBIT 8-SOIC |
Data Sheet |
|
|
||||||
|
EPCS1SI8 |
Altera |
IC CONFIG DEVICE 1MBIT 8-SOIC |
Data Sheet |
|
|
||||||
|
EPCS1SI8N |
Altera |
IC CONFIG DEVICE 1MBIT 8-SOIC |
Data Sheet |
|
|
||||||
|
EPCS4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
